ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9

Name: ASTM A403 WP310SS UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B169
Brand: YUHONG
Price: 1 USD

Wholesale ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9 from china suppliers

Brand Name : YUHONG

Model Number : ASTM A403 WP310-S

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According to Clients' Requirement

Delivery Time : 5 - 60 Work Days

Packaging Details : Ply-wooden Case/ Pallet

Standard : ASTM A403 / ASME SA403

Material Grade : WP310S-S / UNS S31008

Size : 1/2" - 48"

Schedule : SCH 5 - SCH XXS

Type : Seamless, Welded

Application : Chemical,Steel Coiler,Commodity,Food

Contact Now

ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9

ASTM A403 WP310S stainless steel pipe elbow contains material which is the low carbon version of stainless steel 310. SS310S is less prone to sensitization in service and embrittlement. Both Stainless steel 310 and Stainless steel 310s are forged in the temperature range of 975 to 1050 °C. SS310S is used mainly for ease of fabrication and is also corrosion resistant. Stainless steel 310 and stainless steel 310S are identical only the major difference is of carbon content that reduces carbide precipitation and also helps in improving weldability. 310S stainless steel pipe fittings have oxidation resistance up to 2000° F, having moderate strength at higher temperature. It also resists hot corrosion till an extent.

Specifications:

Specifications	ASME SA403 / ASTM A403
Grade	WP310S
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Size Range	1/2” To 48”
Manufacturing Type	Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Schedule	SCH5 - SCHXXS
End Connection	Butt Weld
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2

Equivalent Grades:

GRADE	WERKSTOFF NR.	UNS	JIS	BS	GOST	EN
SS310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	X8CrNi25-21

ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9

Chemical Composition:

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS310S	0.08 max	2.0 max	1.00 max	0.045 max	0.030 max	24.00 – 26.00	0.75 max	19.00 – 21.00	53.095 min

Mechanical Properties:

Density	Yield Strength (0.2%Offset)	Tensile Strength	Melting Point	Elongation
7.9 g/cm3	30000Psi (205MPa)	75000Psi (515MPa)	1402 °C (2555 °F)	40%

Applications:

Pharmaceuticals

Oil and Gas Processing

Seawater Desalination

Condensers

Textile machinery

Oil and gas industry

Pulp and paper industry

Power plants

Energy Industries

Modern Architecture

Water Waste System

Heat Exchanger

Dairy And Food Processing

ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9

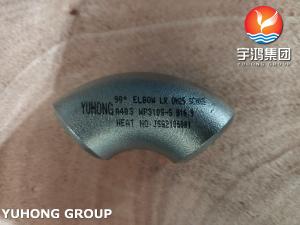

ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9 Images
