Product Name : Cladding Flange
Dimensions : ANSI Flange, ASME Flange, BS Flange, DIN Flanges, EN Flange
Standard : ASTM A694 / ASME SA694
Base Material : F60/ F65/ F70/ F52
Flange Type : WN, SO, LWN, BL flange
Flange Surface : FF, RF, RTJ
Class : 150#, 300#, 600#, 900#, etc.
Cladding Material : Nickel Alloy, Stainless Steel, Copper
Packing : Plywood Case/Pallet
High Light : Forged Alloy Steel Flange, ASTM A694 F52 Carbon Steel Forged Flanges
B16.5 ASTM A694 / ASME SA694 F52 with Inconel 625 Cladding Flanges
A cladded flange undergoes weld overlay cladding, a process similarly applied to pipelines and associated components (e.g., pipes, fittings, plates, tubesheets). This technique creates a bonded, corrosion-resistant layer on surfaces exposed to corrosive or erosive environments, extending service life in demanding industrial applications
ASTM A694 Grade F52 Carbon Steel Flange Chemical Composition
Carbon [C] | Manganese [Mn] | Phosphorus [P] | Sulfur [S] | Silicon [Si] |
≤0.30 | ≤1.60 | ≤0.025 | ≤0.025 | 0.15-0.35 |
ASTM A694 Grade F52 Carbon Steel Flange Mechanical Properties
Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
A694 F52 | 415 | 315 | 20% |
ASTM A694 Grade F52 Carbon Steel Flange Physical Properties
Specification | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
MPa | ksi | MPa | ksi | % | |
A694 Grade F52 | 360 | 52 | 455 | 66 | 20 |
To ensure accurate quoting and avoid costly revisions, the client should provide below inquiry information of cladding flange:
1. Base Material & Specifications
Base Metal Grade: e.g., SA105 (carbon steel), SA182 F316L (stainless)
Standard: ASME, ASTM, EN, etc. (e.g., ASME B16.5, ASME SA182)
2. Cladding Material & Thickness
Alloy: e.g., Inconel 625, Monel 400, 316L Stainless
Clad Thickness: Nominal/minimum (e.g., 3.0mm nominal after machining)
Bonding Method: Explosive bonding, roll bonding, or weld overlay
3. Flange Design & Dimensions
Flange Type: Weld neck, slip-on, blind, etc.
Size & Pressure Class: e.g., NPS 12", Class 300
Face Type: RF (Raised Face), FF (Flat Face), RTJ (Ring-Type Joint)
4. Cladding Coverage Zones
Required Areas: Full face (including bolting circle), bore, hub, backsid
5. Machining & Finishing
Surface Finish: Ra value (e.g., 3.2 μm for gasket seating)
Final Dimensions: Post-clad machining allowances (clad layer shrinks during bonding)
Applications
Oil and Gas Industry
Chemical Industry
Power Generation
Mining and Ore Processing
Water Treatment
Pulp and Paper Industry
Aerospace and Defense
Food and Beverage Industry
![]() |

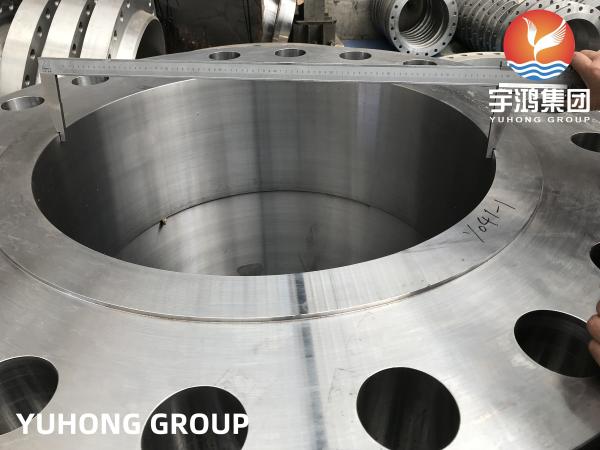

Inconel 625 Cladding Flange ASTM A694 F52 Carbon Steel Cladding Weld Neck Flange Images |
